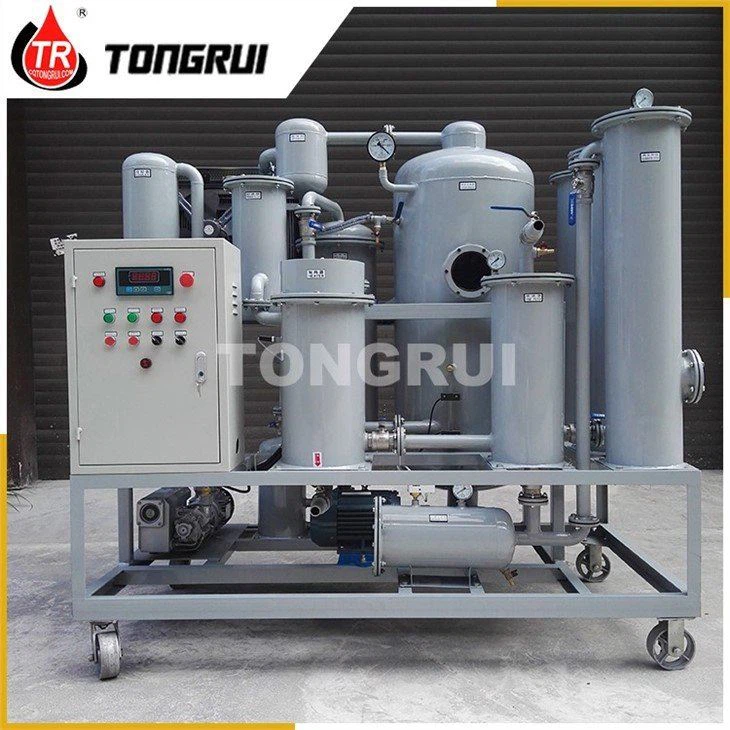

High Pressure Hydraulic Oil Filter

This high pressure hydraulic oil filter by vacuum system,filter system and decolor oil regeneartion system ,It is applied to purify various high-precision lubricating oil such as black hydraulic oil, black mechanical oil, dark coolant oil, dark gear oil, dark heat treatment oil,black industrial oil and so on.

जांच भेजें

विवरण

Application:

Advantage:

This high pressure hydraulic oil filter can fast degas, dewater,decolor and remove the impurity and the volatile matter (for example ethyl alcohol, gasoline, ammonia and so on). Enhances the oil quality, restores the lubricating oil viscosity, augments the flash point and improves the operational performance. Guaranteed the hydraulic system and the dynamic system, the lubrication system normal operation, so the machine is suit for many lines, such as the mine, metallurgy, electric power, transportation, manufactures and so on.

Usage:

1. Recovery of PH value color

2. Remove water, particles quickly

3. Specializing in deeply deteriorated

Technical specification:

Item		Unit	ZJD-6		ZJD-10			ZJD-20		ZJD-30		ZJD-50		ZJD-75		ZJD-100	ZJD-150	ZJD-200
Flow rate		L/H	360		600			1200		1800		3000		4500		6000	9000	12000
Vacuum degree		Mpa	-0.06 - -0.095
Working pressure		Mpa	Less than or equal to 0.4
Working temperature		degree	0 - 100
Power supply			380V/50Hz（or as per requirement）
Noise		dB(A)	Less than or equal to 75								Less than or equal to 78				Less than or equal to 80		Less than or equal to 82
Heating power		kW	9			15			18		30		45		60	96	120	135
Total power		kW	11			17			21		33		48		65	102	135	147
Inletoutlet size		mm	15			25			25		25		32		42	50	50	60
Weight		Kg	350			500			550		600		750		850	1000	1500	2000
Size(mm)	L	mm	1100			1300			1350		1350		1350		1400	1650	1750	1850
	W	mm	950			900			950		1000		1100		1100	1000	1400	1500
	H	mm	1350			1600			1650		1650		1700		1750	1750	1950	2000
Oil index after treatment
Demulsification value				min			Less than or equal to 15min
Gas content				percent			Less than or equal to 0.1 percent
Water content				percent			Trace(no)
Cleanness				NAS			Less than or equal to 6
Precision				µm			Less than or equal to 5µm（or customer advice）

Special order:

We can take special order for you, like the machine face, color, weight, size, filter precision, filter numbers, spare parts, oil specification tester, etc.

Also, if you can give us your flow chart and other technology inquiry, we can manufacturing the machine as you like.

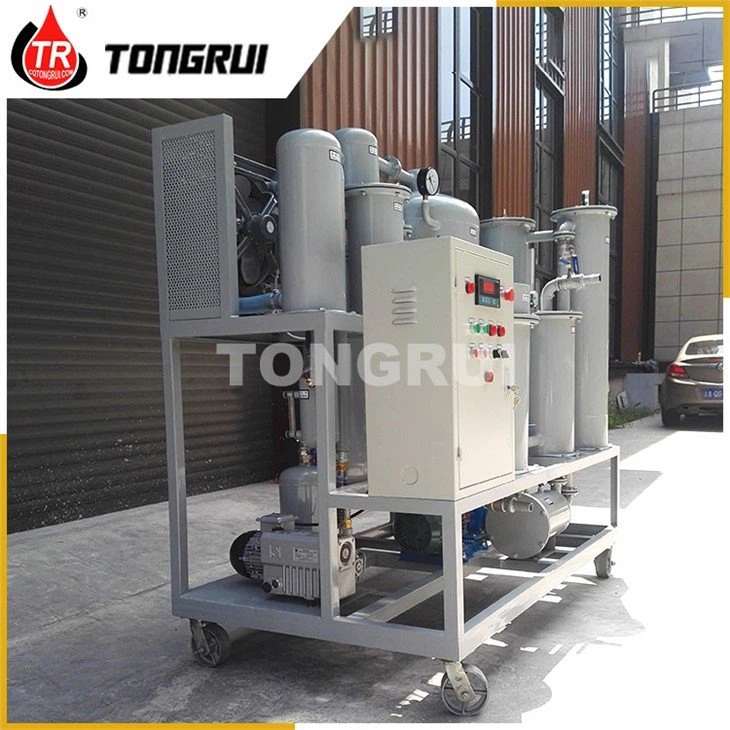

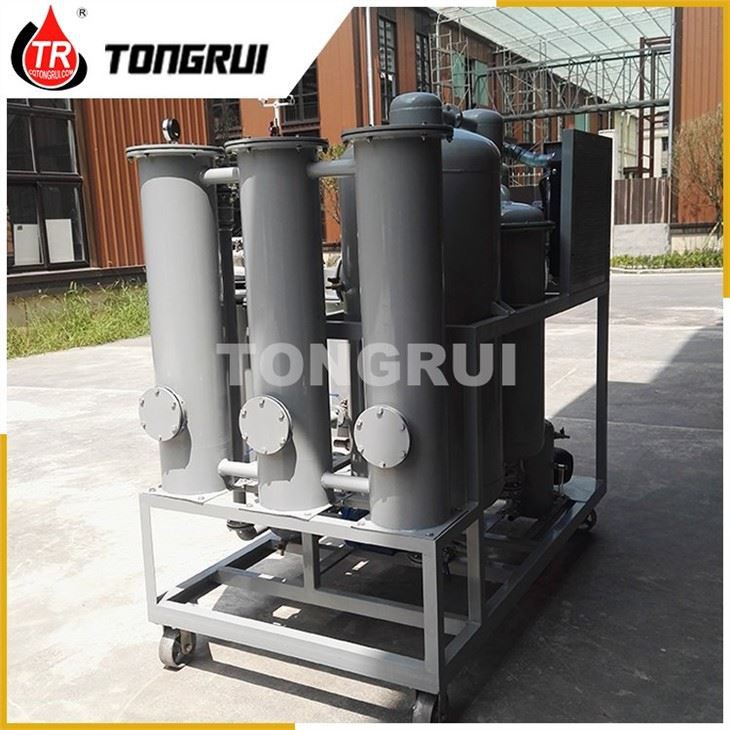

High pressure hydraulic oil filter pictures:

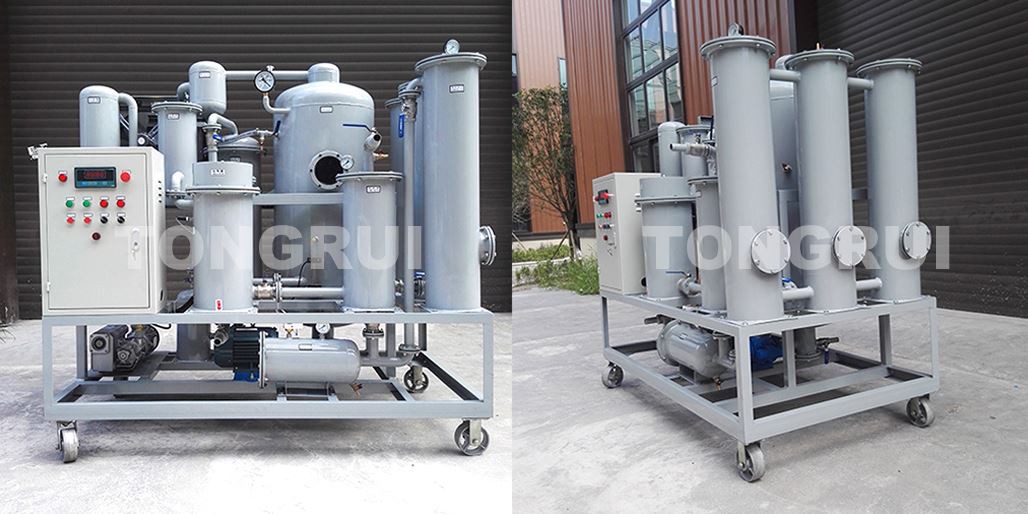

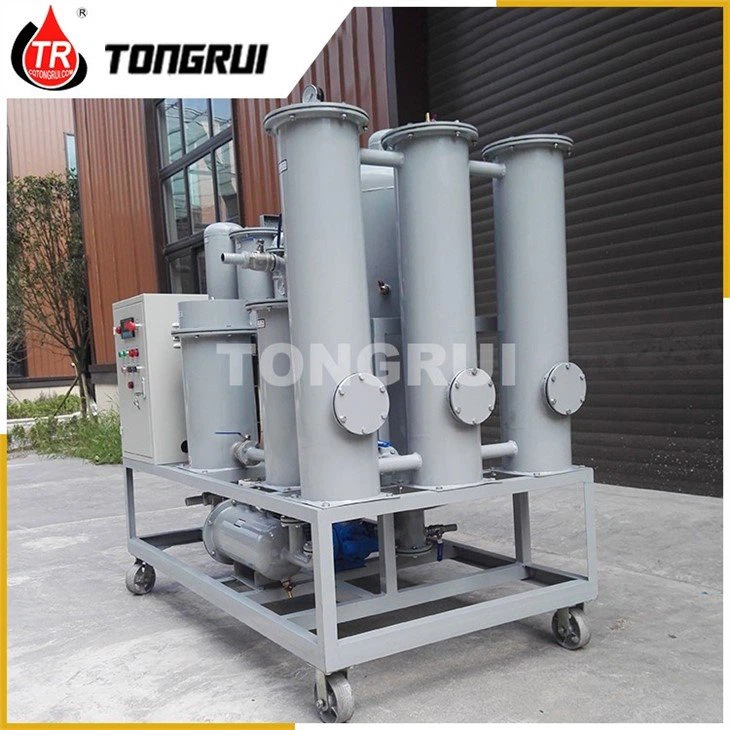

oil purifier 3000liters
